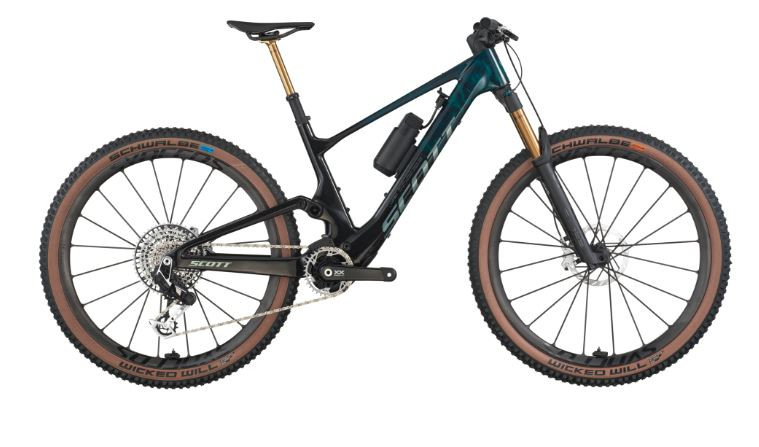

SCOTT LUMEN 900 SL

For mountain bikers looking to wring every last ounce of fun out of the trail, the updated Lumen 900 SL eMTB is the ultimate ride. At 15.5kg and specced with more torque than ever, it tricks like a down-country bike and pulls like a full-power torque to blast you out of hairpins and easily overcome monster inclines.

The extra juice is courtesy of TQ’s new HPR60 motor unit, which boosts torque from 50Nm—as on the previous Lumen 900—to 60Nm of thrust that might make you feel like you’ve got a World Champion’s legs. Typically, that improvement comes at the cost of a heavier system weight, but that’s not the case with the HPR60. It’s the same weight as the outgoing motor drive used on the previous Lumen 900, but 20% stronger.

Energy management and range are also improved with cooling fins and new software that combine to make the drive unit as efficient as its predecessor despite the additional torque. Lumen 900 SL takes your rides far with its 360Wh main battery that can be complemented with the included Range Extender Battery. The small-water-bottle-sized extender attaches with a quick-release mount or easily stows away in a day pack.

This Lumen 900 SL features a brightly illuminated color screen for crisp viewing of your motor and battery performance. We’ve also specced it as your ultimate e-MTB with a 140mm FOX Factory 36 SL fork, custom Scott 130mm integrated shock, SRAM XX Eagle AXS, and Motive Ultimate brakes.

• FRAME

  Carbon HMX
  Integrated Suspension Technology
  Flex Pivot, Adjustable head angle
  Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline

• TRAVEL

  Front: 140mm, Rear: 130mm

• FORK

  FOX 36SL Factory Air, Kashima Grip SL
  3-Modes with low Speed adj., Kabolt 15x110mm axle, 44mm offset
  Tapered steerer, Lockout, Reb. Adj.
  140mm travel

• REAR SHOCK

  FOX NUDE 6T Factory EVOL Trunnion
  SCOTT custom w. travel, geo adj.
  3 modes: Lockout-Traction Control-Descend
  Low Speed Adj., Custom large Air volume, Kashima, Reb. Adj.
  Bearing Hardware, Travel 130-90-Lockout, T165X45mm

• REMOTE SYSTEM

  SCOTT TwinLoc 2 Technology
  Suspension & Dropper Remote
  3 Suspension modes

• DRIVE UNIT

  TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

• BATTERY

  TQ Internal 360Wh + Range Extender 160Wh

• DISPLAY

  TQ HPR Color
  Bluetooth, ANT+, Dedicated Smartphone app

• CHARGER

  TQ 100-240V-4A

• REAR DERAILLEUR

  SRAM XX Eagle AXS Transmission 12 Speed
  Wireless Electronic Shift System

• SHIFTERS

  SRAM AXS Pod Rocker Controller

• CRANKSET

  SRAM XX, Carbon

• CHAINGUIDE

  e*thirteen, e*spec Slider

• CHAINRING

  SRAM XX Eagle Transmission 34T chainring

• CHAIN

  SRAM CN XX Eagle Transmission

• CASSETTE

  SRAM XX Eagle XS 1297 Transmission 10-52

• BRAKES

  SRAM Motive Ultimate Stealth 4-Piston Disc

• ROTOR

  SRAM HS2 CL Rotors, F&R 180mm

• HANDLEBAR

  Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm
  Syncros Performance XC lock-on grips

• SEATPOST

  FOX Transfer Factory Dropper Post Kashima
  31.6mm, S size 125mm, M size 140mm
  L ize 150mm, XL size 175mm

• SEAT

  Syncros Tofino Regular 1.0
  Carbon rails

• HEADSET

  Syncros - Acros Angle adjust & Cable Routing HS System
  Stainless, +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• WHEELSET

  Syncros Silverton SL2-30 CL full Carbon
  F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim
  DT Swiss 240 Ratchet EXP 36, XD Driver
  SRAM TyreWiz, Syncros SL Axle w/Removable Lever
  with 6mm Allen, T30 and T25 Tools

• FRONT TIRE

  Schwalbe Wicked Will 29x2.4" EVO
  Super Race, TLE, 67EPI, Addix Speed Soft

• REAR TIRE

  Schwalbe Wicked Will 29x2.4" EVO
  Super Race, TLE, 67EPI, Addix Speed Grip
