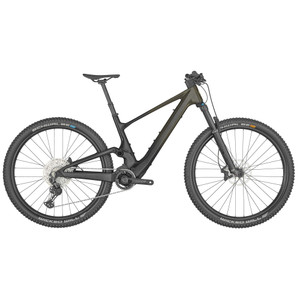

SCOTT PATRON eRIDE 910

Medium in Store

The all-new Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

KEY FEATURES

• Patron eRIDE Alloy Frame
• FOX 38 Perf. 160mm Fork
• FOX Float EVOL eRIDE, 160mm, TwinLoc
• Shimano XT 12 Speed
• Bosch CX, 750Wh PowerTube
• Shimano SLX 4 Piston Disc Brakes
• Maxxis Foldable Tires
• Syncros Dropper Post and Parts
• Bosch Light Cable pre-installed F&R

• FRAME

  Alloy Frame & Link
  Virtual 4 link kinematic VLK
  29x2.6 / Boost 148x12mm UDH
  160mm travel / Bosch Gen4 / Integr. removable Battery
  1.8" Headtube, Central Kickstand Mount
  Integr. Cable

• TRAVEL

  Front: 160mm / Rear: 160mm

• FORK

  FOX 38 Perf. Air / eMTB+ / FIT4
  3-Modes with low Speed adj. / QR Axle 15x110mm axle
  44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel

• REAR SHOCK

  FOX Float EVOL eRIDE Trunnion
  3 modes / Lockout-Trail-Descend
  DPS / Reb. Adj.
  Travel 160mm / 205x60mm

• REMOTE SYSTEM

  SCOTT TwinLoc 2 Technology
  Suspension & Dropper Remote
  3 modes

• DRIVE UNIT

  Bosch Performance CX
  EU: 25kmh / INT: 20mph

• BATTERY

  PowerTube 750Wh

• DISPLAY

  Bosch LED Remote & Kiox 300

• CHARGER

  4A Charger

• REAR DERAILLEUR

  Shimano XT / 12 Speed

• SHIFTERS

  Shimano SL-M8100

• CRANKSET

  FSA CK-745 165mm / 34T

• CHAINGUIDE

  e*thirteen / e*spec Slider

• CHAINRING

  FSA WB604 / 34T / DM / Steel

• CHAIN

  Shimano CN-M8100

• CASSETTE

  Shimano CS-M8100 / 10-51 T

• BRAKES

  Shimano SLX / BR-M7120 4 Piston

• ROTOR

  Front&Rear: SM-RT70 CL 203mm

• HANDLEBAR

  Syncros Hixon 1.5 / Alloy 7050D.B.
  12mm rise / 9° / 780mm
  Syncros Pro lock-on grips

• H'STEM

  Syncros AM1.5 / 7050 Alloy
  31.8mm / 4° / 1 1/8"

• SEATPOST

  Syncros Duncan Dropper Post 2.5
  Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm

• SEAT

  Syncros Tofino 1.5 Regular
  Titanium rails

• HEADSET

  Acros / 1.8"
  ZS66 OD74 / integr. Cable

• HUB (FRONT)

  Formula CL-811 / 15x110mm

• HUB (REAR)

  Formula ECT-1481 / Boost 148x12mm

• SPOKES

  Stainless Black

• RIMS

  Syncros MD30 / 32H / 30mm / Pin Joint
  Tubeless ready

• FRONT TIRE

  Maxxis Dissector 29x2.6"
  120TPI Foldable Bead
  EXO+ / TR Tubeless ready
  3C Maxx Terra

• REAR TIRE

  Maxxis Dissector 29x2.6"
  120TPI Foldable Bead
  EXO+ / TR Tubeless ready
  3C Maxx Terra

• LIGHTS

  Bosch Light Cable pre-installed F&R
